Supper Low Electrical Adjustable Hospital Bed
Model: FS 328-L
4 Section, Double Fowler, High / Low
Functions:
Angle of back section:0-80°
Angle of knee section:0-40°
Size: 2120 x 970 x 300
Adjustable height: 300mm to 700mm
Drainage Bag Hook: 3 Pcs / Side
Specification:
Frame and Mattress Base: Made of Steel
Finish: Epoxy Powder Coated & baked finish, resistant to chipping and scratching.
Head and Foot Board are ABS Injection Moulding with Safety Lock System.
Castor Wheel: 4 x 5” Single Wheel Caster with Brake and Dust-Proof Cover
Aluminum alloy collapsible type side rails
-
High/Low, Double Fowler
Description:
Three Function Electric Hospital Bed
Overall Size:2120X9700X500-800mm
Detachable ABS Head/Foot Ends with blue decoration cards on the middle
Cold Roll Steel Powder coated frame, warm and luxury outlook
Aluminum and Steel Collapsible Side Rails (2 pcs)
Anti-static lockable four castors
Stainless steel I.V. Hole X 6
Urine Hook X2
I.V. Pole X 1
Bed moving capacity: 170KG
Functions
Function of Backrest 0-80±5°
Function of Footrest 0-40 ±5°
Function of Hi-Lo Adjustment 500mm-800mm (From mattress platform to the ground)
-

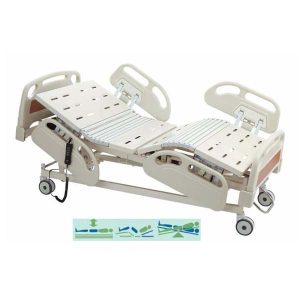

Five Functions Electric Hospital Bed Model: FS 528D (Deluxe)
SPECIFICATION:
L2120*W970*H450-700mm
All parts are made by tooling to ensure uniform quality.
Integrated stamping frame and mattress base are steel made with epoxy. Polyester powder coated& baked finish,
resistant to chipping and scratching;
Bed head/foot boards are made of ABS plastic, washable and removable.
FUNCTION:
- 1) Angle of back section: 0 ~ 80° (±5°)
- 2) Angle of leg section: 0 ~ 40°(±5°)
- 3) Adjustable height: 450-700mm
- 4) Angle of Trendelenburg and reserve Trendelenburg: 0 ~ 13°(±2°)
Standard Accessories:
- Four pieces individual PP siderails, embed design hand-set, easy to operate.
- Taiwan Linkan actuator, CE approved and quiet operation.
- ABS headboard and footboard
- 1pc control box, 1pc handset
- 5″ central control castors.
- Two sectional I.V pole;
