Model:FS –M1002
Basic Hospital Bed with 2 Function 4 Sections / Double Fowler Position
Features
Advanced Mechanical manual system (1 Systems)
ABS bed head/end, The lateral rails made of aluminum alloy can go up and down Castors (2pcs with brakes, 2pcs without brakes)
4pcs soft crashworthy bumpers, 2pcs urine hooks, 2 IV drip holes
Integrated stamping frame and treated with electrostatic spraying, anti-aging and anti-rust Has been assessed and conforms to the standards of ISO
-
Model:FS –M1001
Economic Hospital Bed with 1 Function 4 Sections / Single Fowler Position
Integrated stamping frame and mattress base are steel made with epoxy. Polyester powder coated & baked finish, resistant to chipping and scratching.
Bed head/foot board and bed frame are made of ABS plastic, washable and removable.
Features
Advanced Mechanical manual system (1 Systems)
ABS bed head/end, The lateral rails made of aluminum alloy can go up and down Castors (2pcs with brakes, 2pcs without brakes)
4pcs soft crashworthy bumpers, 2pcs urine hooks, 2 IV drip holes
Integrated stamping frame and treated with electrostatic spraying, anti-aging and anti-rust Has been assessed and conforms to the standards of ISO
-
FLAT TOP / FIXED HEIGHT
- • Full Length Safety Siderails With Self Locking Mechanism
- • Siderails Lowered Down Vertically When Not In Use
- • Frame & Safety Siderails : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Finishing : Epoxy Powder Coated
- • Castors : 4 x 100mm Grey Rubber, Diagonal 2 With Brakes
- • Mattress Base Size : 1905mm(L) x 915mm(W)
- • Height To Mattress Base : 610mm
-
SINGLE FOWLER POSITIONS / FIXED HEIGHT
- • Backrest Adjustable By Cranking Mechanism With Cranking Handle Located At Footend Of Bed
- • Full Length Safety Siderails With Self Locking Mechanism
- • Siderails Lowered Down Vertically When Not In Use
- • Frame & Safety Siderails : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Finishing : Epoxy Powder Coated
- • Castors : 4 x 100mm Grey Rubber, Diagonal 2 With Brakes
- • Mattress Base Size : 1905mm(L) x 915mm(W)
- • Height To Mattress Base : 610mm
-
DOUBLE FOWLER POSITIONS / FIXED HEIGHT
- • Backrest And Knee Bend Positions Adjustable By Cranking Mechanism With Individual Cranking Handles Located At Footend Of Bed
- • Full Length Safety Siderails With Self Locking Mechanism
- • Siderails Lowered Down Vertically When Not In Use
- • Frame & Safety Siderails : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Castors : 4 x 100mm Grey Rubber, Diagonal 2 With Brakes
- • Mattress Base Size : 1905mm(L) x 915mm(W)
- • Height To Mattress Base : 610mm
-
MODEL: FS 100-C-2
2 SECTION / SINGLE FOWLER POSITIONS
• Fixed Height – 550mm
• Gas Spring Assisted Backrest Adjustment
• Frame : Tubular Mild Steel
• Mattress Base : 1.2mm Steel Sheet With Ventilation Holes
• Finishing : Epoxy Powder Coated
• Head And Footend Panels : Detachable And Interchangeable Tubular Steel Frame With Laminated Fibreboard Panels
• Castors : 4 x 100mm Grey Rubber Diagonal 2 With Brakes
• Mattress Base : 1905mmL x 915mmW
-

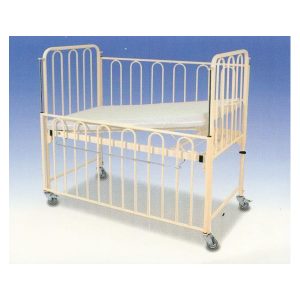

HOSPITAL CHILD COT BED
FIXED HEIGHT FLAT TOP – TILTING
- • Full Length Safety Siderails With Self Locking Mechanism
- • Siderails Lowered Down Vertically When Not In Use
- • Frame & Safety Siderails : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Perforated Ventilation Holes Manually Adjustable Into 3 Tilting Positions
- • Finishing : Epoxy Powder Coated
- • Castor : 4 x 100mm Grey Rubber Diagonal 2 With Brakes
- • Mattress Base Size : 1370mm(L) x 760mm(W)
- • Height To Mattress Base : 600mm
C/W
- • 100mm Thick PU Foam Mattress With Calico Cover
-
FLAT TOP / FIXED HEIGHT
- • Full Length Safety Siderails With Self Locking Mechanism
- • Siderails Lowered Down Vertically When Not In Use
- • Frame & Safety Siderails : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Finishing : Epoxy Powder Coated
- • Castor : 4 x 100mm Grey Rubber, Diagonal 2 With Brakes
- • Mattress Base : 1370mm(L) x 760mm(W)
- • Height To Mattress Base : 600mm
C/W:
- • 100mm Thick PU Foam Mattress With Calico Cover
-
HOSPITAL FIXED HEIGHT WARD BED
STANDARD FLAT TOP STEEL HEAD & LEG FRAME
- • Detachable Tubular Steel Head And Leg Frame
- • Frame : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Finishing : Epoxy Powder Coated
- • Castors : 4 x 100mm Grey Rubber, Diagonal 2 With Brakes
- • Mattress Base Size : 1905mm(L) x 915mm(W)
- • Height To Mattress Base : 450mm
FS 104-B
- Head Frame Mounted On 2 Units 75mm, Grey Rubber Castors
- Leg Frame Mounted On Non-Slip Rubber Studs
-
- 4 Section, Double Fowler Mattress Bases
- • 2 Independent Cranking Mechanism For Backrest
- • Cranking Handles Located At Footend Of Bed
- • Adjustment And Knee Bend Adjustment
- • Frame : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Finishing : Epoxy Powder Coated
- • Head And Footend Panel : Detachable And Interchangeable Tubular Steel Frame With Laminated Fibreboard Panels
- • Castors : 4 x 100mm Grey Rubber, Diagonal 2 With Brakes
- • Size Of Mattress Base : 1905mm(L) x 915mm(W)
- • Height To Mattress Base : 450mm
-
STEEL HEAD & LEG FRAME
- • 4 Section, Double Fowler Mattress Base
- • Cranking Handles Located At Footend Of Bed
- • Frame : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Finishing : Epoxy Powder Coated 2 Independent Cranking Mechanism For Backrest Adjustment And Knee Bend Adjustment
- • Castors : 4 x 100mm, Grey Rubber, Diagonal 2 With Brakes
- • Size Of Mattress Base : 1905mm(L) x 915mm(W)
- • Height To Mattress Base : 450m
-
HOSPITAL FIXED HEIGHT, SINGLE FOWLER WARD BED
- • 2 Section, Single Fowler Mattress Base
- • Mechanical Cranking Mechanism For Backrest Adjustment
- • Cranking Handle – Located At Footend Of Bed
- • Frame : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Finishing : Epoxy Powder Coated
- • Head And Footend Panel : Detachable And Interchangeable
- : Tubular Steel Frame With Liminated Fibreboard Panels
- • Castors : 4 x 100mm Grey Rubber, Diagonal 2 With Brakes
- • Mattress Base Size : 1905mm(L) x 915mm(W)
- • Height To Mattress Base : 450mm
OPTIONAL
- • 1 Pair : ABS/Polymerised Head And Footend Panels With Build-in Bumper Guard At Four Corners
-
HOSPITAL FIXED HEIGHT , SINGLE FOWLER WARD BED
- • 2 Section, Single Fowler Mattress Base
- • Mechanical Cranking Mechanism For Backrest Adjustment
- • Cranking Handle Located At Footend Of Bed
- • Frame : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Finishing : Epoxy Powder Coated
- • Head And Footend Panel : Detachable And Interchangeable Tubular Steel Frame With Liminated Fibreboard Panels
- • Castors : 4 x 100mm Grey Rubber, Diagonal 2 With Brakes
- • Mattress Base Size : 1905mm(L) x 915mm(W)
- • Height To Mattress Base : 450mm
-
STEEL HEAD & LEG FRAME
- • 2 Section, Single Fowler Mattress Base
- • Backrest Adjustment By Cranking Mechanism
- • Cranking Handle Located At Footend Of Bed
- • Frame : Tubular Mild Steel
- • Mattress Base : 1.2mm Thick Steel Sheet With Ventilation Holes
- • Finishing : Epoxy Powder Coated
- • Castors : 4 x 100mm, Grey Rubber, Diagonal 2 With Brakes
- • Size Of Mattress Base : 1905mm(L) x 915mm(W)
- • Height To Mattress Base : 450mm
FS 103-B
- • Head Frame Mounted On 2 Units 100mm Castors
- • Leg Frame Mounted On Non-Slip Rubber Studs
-
Advanced Mechanical manual system(3 Systems)
ABS bed head/end, The lateral rails made of aluminum alloy can go up and down luxurious castors (2pcs with brakes, 2pcs without brakes)
4pcs soft crashworthy bumpers, 2pcs urine hooks, 2 IV drip holes
Integrated stamping frame and treated with electrostatic spraying, anti-aging and anti-rust Hasbeen assessed and conforms to the standards of ISO
